CUT CORE
Packing & Delivery

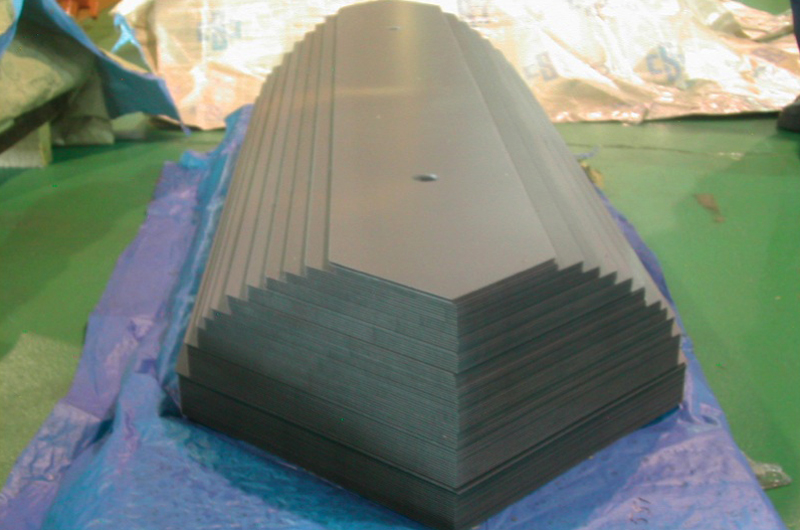

We supplies lamination in all types, with or without holes, cut at 90° or 45°. Those cutting product can be supplied packed size by size or pre-assembled and strapped up to build the End Limbs and Yokes.

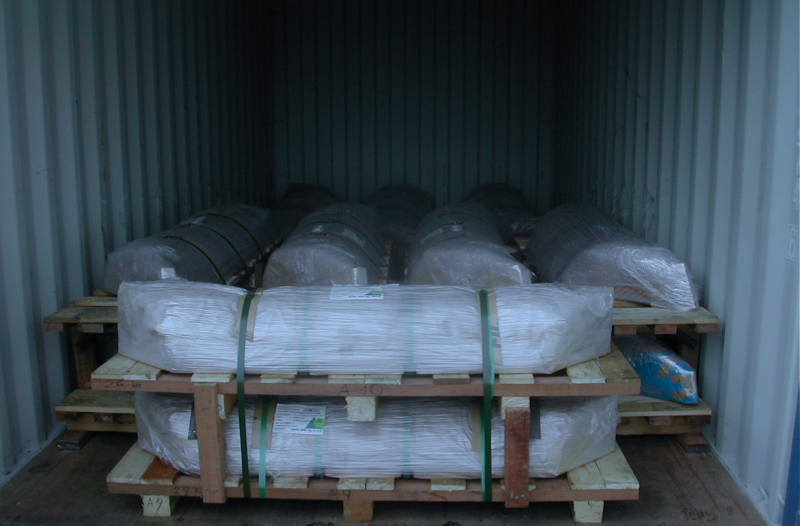

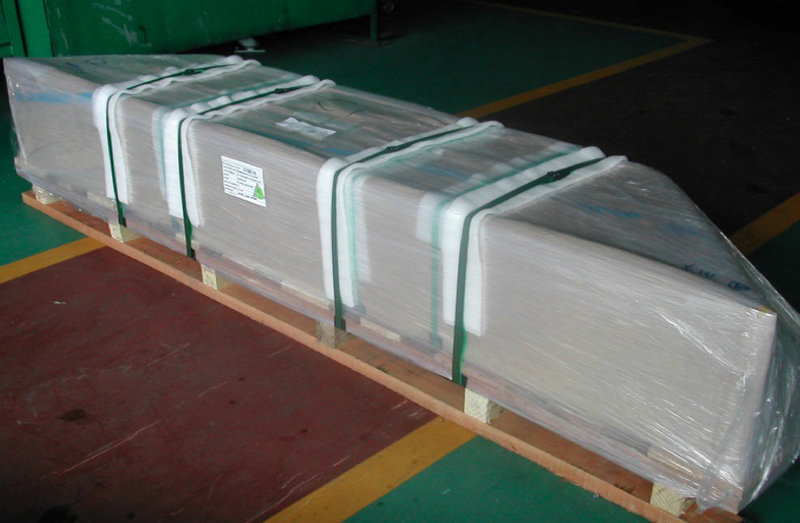

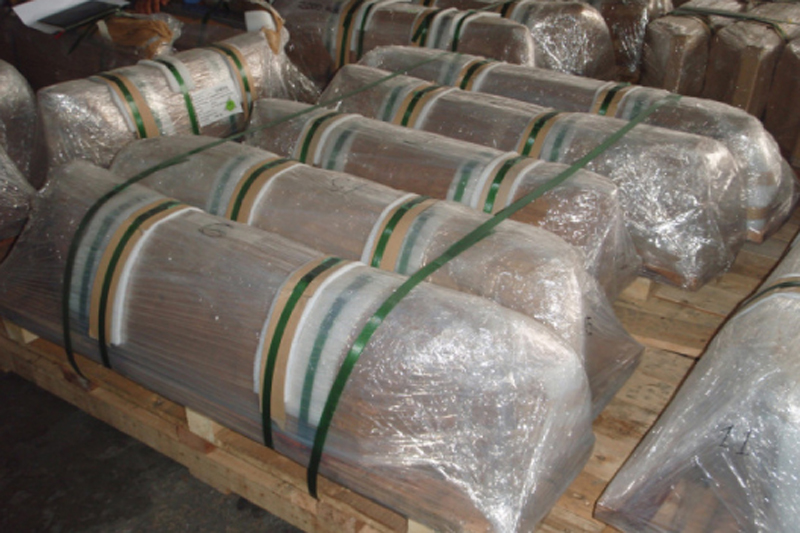

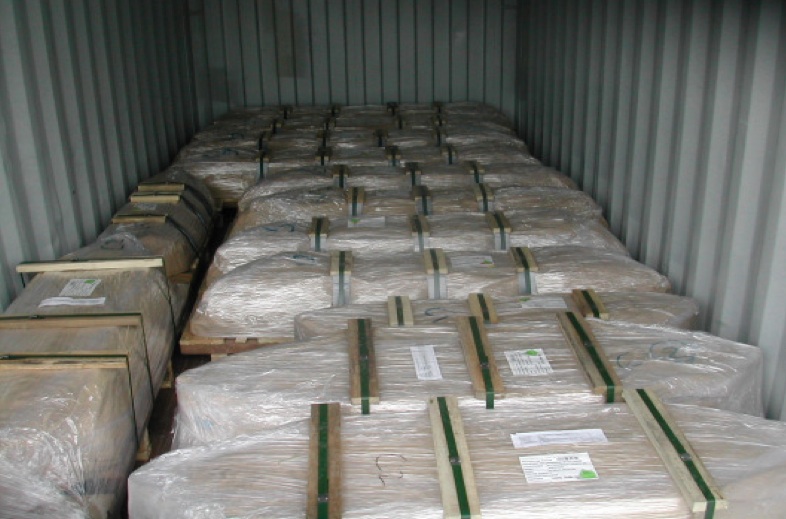

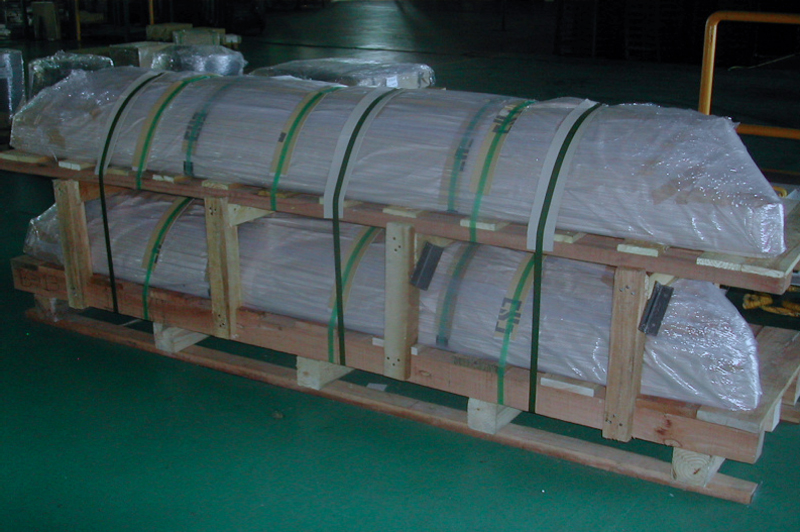

The laminations to be sold are then packaged in the most convenient way for the customer.

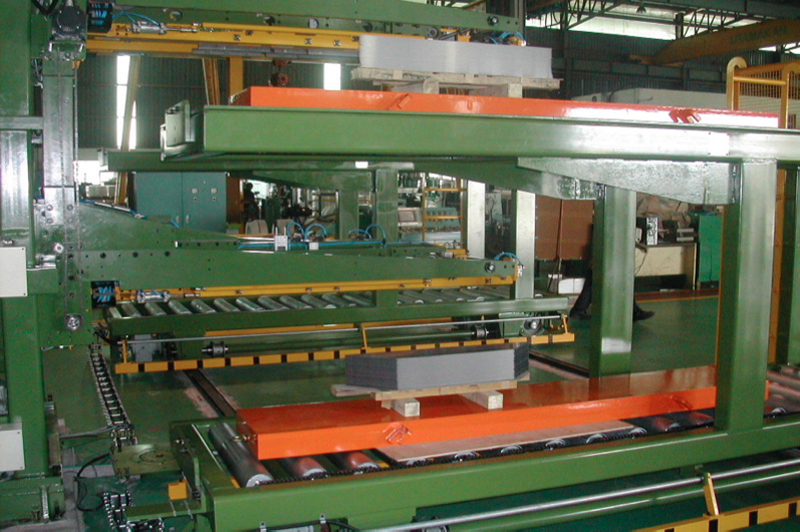

All packing and delivery operations with a fully integrated with computer system, we reduce mishandling and ensure on time delivery.





Click to enlarge image
Quality Control
Cut Core Quality Inspection

Item
Norminal (mm)
Tolerances (mm)


Thickness
0.27
0.30
0.35
0.03
0.03
0.03


Burr
.027
.030
0.35
0.013 max
0.015 max
0.017 max


Withd
70 < 150
150 < 400
400 < 640
+0, -0.2
+0, -0.3
+0, -0.5


Lenght
< 3000
< 2000
> 2000
+1.0, -1.0
-0, +1.5
-0, +2.0


Wavy

5 wavy / 1.5 meter
